P0400 GS
P0400 GS
Pitch
40 mm
40 mm
Inner height
21.5 mm
21.5 mm
Inner widths
50 - 52 mm
50 - 52 mm
This variant for office use is based on the PROTUM® cable carrier system. With in inner width of 50 mm and cable installation on both sides, PROTUM OFFICE offers sufficient space for telecommunication, energy and data cables in modern offices. The linkless design can blend into the environment as a design element, e.g. with an elegant silver-grey optic.
Small, light cable carrier
- Long service life – no links and therefore no link wear
- Easy to install and fill
- Suitable for retrofitting
- Clean, space-saving installation
- Can be filled on one or both sides
Easy and fast installation
- Standard connection for table frame, round and square outside the footwell
- Up to 4 installation options, depending on connection (magnets, screws, cable ties and adhesive tape)
- Floor connection for sturdy positioning and floor connection
Application
- Table wiring
- Integration power strips
- Room wiring
- … and more

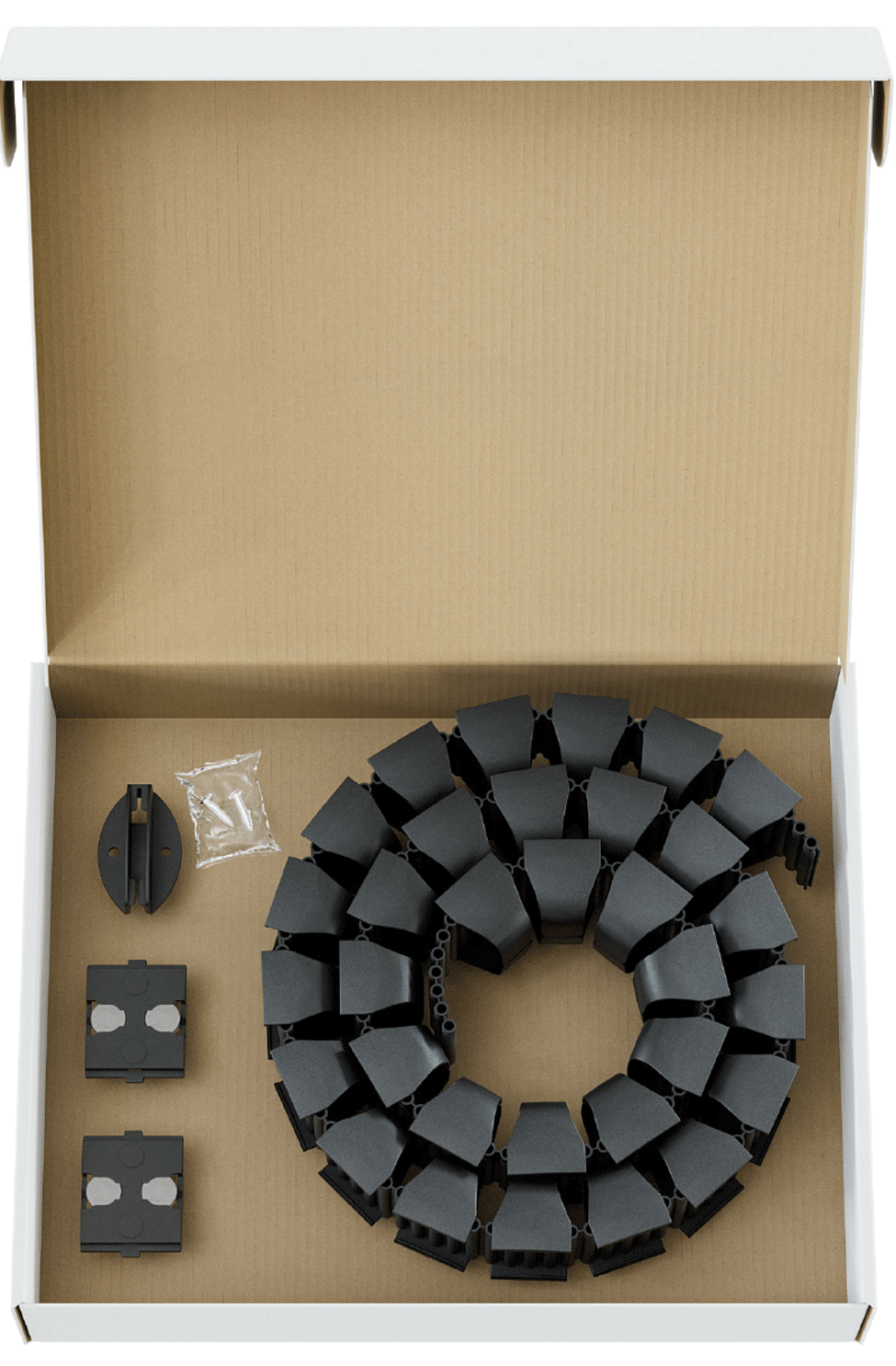

Ready-to-install standard sets, including mounting hardware. Individual sets (from 5 units = 250 sets) only for bulk buyers on request.
Stay Variants
P0400GS01 (one-sided)
more details
P0400GS02 (double-sided)
more details
P0400GS01.X (Module combination)
more details
Stay Variants

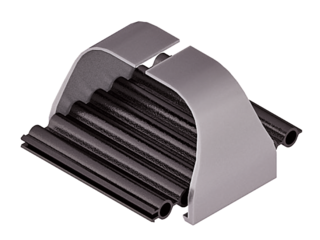

P0400GS01 (one-sided)
Frame with lamellae in the outer radius
- Belt with clip-on side parts.
- One-sided: for pressing in.

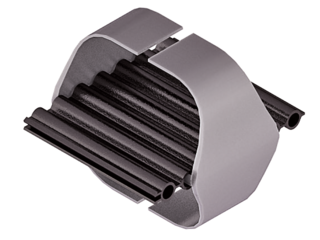

P0400GS02 (double-sided)
Frame with lamellae in the outer and inner radius
- Belt with clip-on side parts.
- Double-sided: for pressing in.

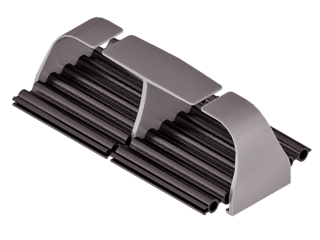

P0400GS01.X (Module combination)
Frame with lamellae in the outer radius
- Belt with clip-on side parts.
- One-sided: for pressing in.
