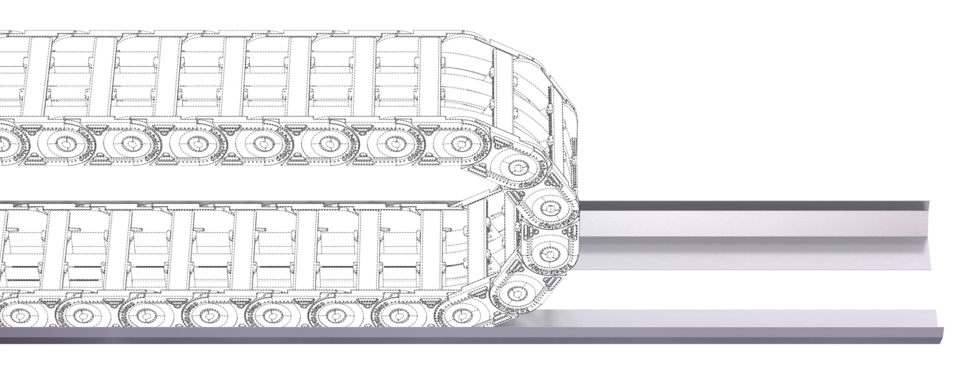

Two parts

Properties

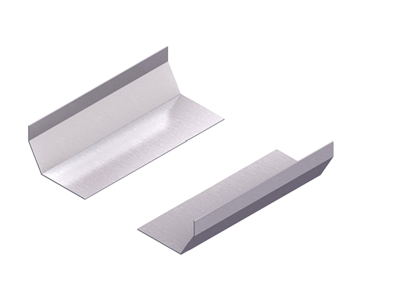

Steel profiles, folded on one side.
Zinc plated sheet steel or stainless steel.
Available for all cable carrier types.
Standard lengths 2000 / 3000 mm, special lengths in 1 mm sections.
Variable widths.

Zinc plated sheet steel / stainless steel

Standard lengths 2000 / 3000 mm
Special lengths on request

Calculating the support tray length

Support tray length L_A: L_A= L_S/2 + U_B + l₁

(for standard connection)

With upstream strain relief on the fixed point, the support trays have to be made accordingly longer.

The use of a one part support tray depends on the the cable carrier. Please contact us.

The use of a two part support tray strongly depends on the inner width used in the cable carrier. For small inner widths, we recommend using one part support trays. Please contact us.

UNIFLEX Advanced series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
UA1455
B_i+ 16	B_k+ 6	25	B_k+ 21	20	1.5
UA1555
B_i+ 18	B_k+ 6	30	B_k+ 21	20	1.5
UA1665
B_i+ 22	B_k+ 15	40	B_k+ 40	30	2
UA1775
B_i+ 26	B_k+ 15	55	B_k+ 40	30	2
UA1995
B_i+ 30	B_k+ 20	60	B_k+ 60	50	2

TKP35 series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
TKP35
B_i+ 12	B_k+ 6	25	B_k+ 21	20	1.5

EasyTrax® series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
ET1455
B_i+ 16	B_k+ 6	25	B_k+ 21	20	1.5

K series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
K0650
B_i+ 28	B_k+ 15	40	B_k+ 40	30	2
K0900
B_i+ 31	B_k+ 15	55	B_k+ 40	30	2

M series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
M0475
B_i+ 17	B_k+ 6	30	B_k+ 21	20	1.5
M0650
B_i+ 34	B_k+ 15	40	B_k+ 40	30	2
M0950
B_i+ 39	B_k+ 15	55	B_k+ 40	30	2
M1250
B_i+ 45	B_k+ 20	60	B_k+ 60	50	3
M1300
B_i+ 50	B_k+ 20	55	B_k+ 60	50	3

TKHP series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
TKHP85
B_i+ 54	B_k+ 15	60	B_k+ 40	30	3
TKHP90
B_i+ 70	B_k+ 20	70	B_k+ 60	70	3

XL series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
XL1650
B_i+ 68	B_k+ 20	70	B_k+ 60	70	3

QUANTUM® series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
Q040
B_i+ 40	B_k+ 6	30	B_k+ 21	20	1.5
Q060
B_i+ 52	B_k+ 15	40	B_k+ 40	30	2
Q080
B_i+ 72	B_k+ 15	55	B_k+ 40	30	2
Q100
B_i+ 82	B_k+ 20	60	B_k+ 60	50	3

TKR series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
TKR0200
B_i+ 16	B_k+ 6	30	B_k+ 21	20	1.5
TKR0260
B_i+ 26	B_k+ 15	40	B_k+ 40	30	2
TKR0280
B_i+30	B_k+ 15	40	B_k+ 40	30	2

TKA series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
TKA38
B_i+ 16	B_k+ 6	25	B_k+ 21	20	1.5
TKA45
B_i+ 16	B_k+ 6	25	B_k+ 21	30	1.5
TKA55
B_i+ 21	B_k+ 15	40	B_k+ 40	30	2

LS/LSX series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
LS/LSX1050
B_i+ 16/18	B_k+ 15	55	B_k+ 40	30	2

S/SX series

B_k [mm]	b₁ [mm]	b₄ [mm]	B_A [mm]	h_A [mm]	s [mm]
S/SX0650
B_i+ 15/17	B_k+ 15	40	B_k+ 40	30	2
S/SX0950
B_i+ 19/21	B_k+ 15	55	B_k+ 40	30	2
S/SX1250
B_i+ 24/26	B_k+ 20	60	B_k+ 60	50	3
S/SX1800
B_i+ 29/32	B_k+ 20	70	B_k+ 60	50	3
S/SX2500
B_i+ 32	B_k+ 25	100	B_k+ 75	80	3
S/SX3200
B_i+ 40	B_k+ 25	100	B_k+ 75	80	3
