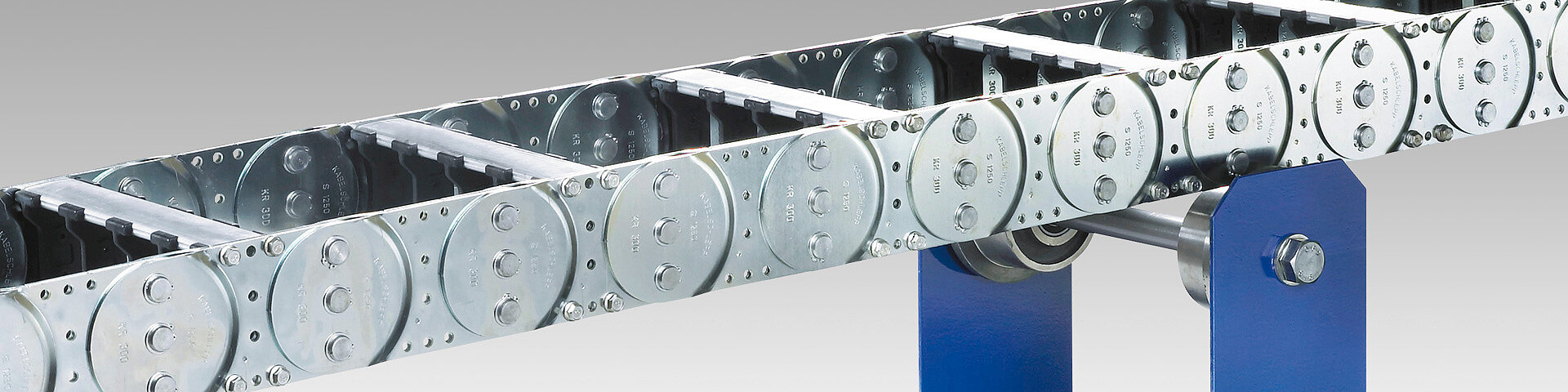

Support rollers

Support rollers are designed to support the upper run of the cable carrier when the maximum unsupported length is exceeded.

KABELSCHLEPP® support rollers are available for the types LS/LSX 1050, S/SX 0650, S/SX 0950, S/SX 1250 and S/SX 1800.

Dimension table for standard support rollers

B_E [mm]	B_G [mm]	b₁ [mm]	H_SR [mm]	H_A [mm]	A [mm]	C [mm]
B_k + 52	B_k + 90	B_k + 20	2 KR + 15	2 KR - 50	B_k - 10	B_k + 60

Support rollers are designed to support the upper run of the cable carrier when the maximum unsupported length is exceeded.

KABELSCHLEPP® reinforced support rollers are available for the types LS/LSX 1050, S/SX 0650, S/SX 0950, S/SX 1250 and S/SX 1800.

Solid design for extreme strain
Long service life thanks to ball bearing rollers
With hard manganese steel wear protection for type S and applications with high strain
Also available in stainless steel
Also suitable for multi-band cable carriers

Dimension table for reinforced support rollers

Type	B_E [mm]	B_G [mm]	D_R [mm]	b₁ [mm]	B_R [mm]	D_s [mm]
LS/LSX 1050	B_k + 64	B_k + 174	120	B_k + 20	B_k + 50	⌀ 200
S/SX 0650	B_k + 59	B_k + 169	90	B_k + 15	B_k + 45	⌀ 170
S/SX 0950, S/SX 1250, S/SX 1800	B_k + 64	B_k + 174	120	B_k + 20	B_k + 50	⌀ 200
S/SX 2500	B_k + 74	B_k + 184	220	B_k + 30	B_k + 60	⌀ 300

Diameter of support roller D_R = 114 mm, for standard stainless steel version. The axis height H_A has to be adapted accordingly.

Dimension table for support stands

Type	H_A [mm]	B_P [mm]	a₂ [mm]	a₃ [mm]	d [mm]	s [mm]
LS/LSX 1050	2 KR - 60	100	20	80	⌀ 18	8
S/SX 0650	2 KR - 45	80	40	–	⌀ 14	8
S/SX 0950, S/SX 1250, S/SX 1800	2 KR - 60	100	20	80	⌀ 18	8
S/SX 2500	2 KR - 110	100	20	80	⌀ 18	8

Ball-bearing rollers for long service life
