SZL strain reliefs
Properties
- Gentle on the cables through large contact area with the cables.
- Simple mounting without tools.
Features
- Cost-effective
- Assembly – easy, fast and without tools
- Large-area surrounding of the cables
- Low height
- Without screws and cable ties
- Contact force defined by spring tension bracket
- Suitable for standard commercial profile rails
- Protected against vibrations
- Long service life for dynamic applications

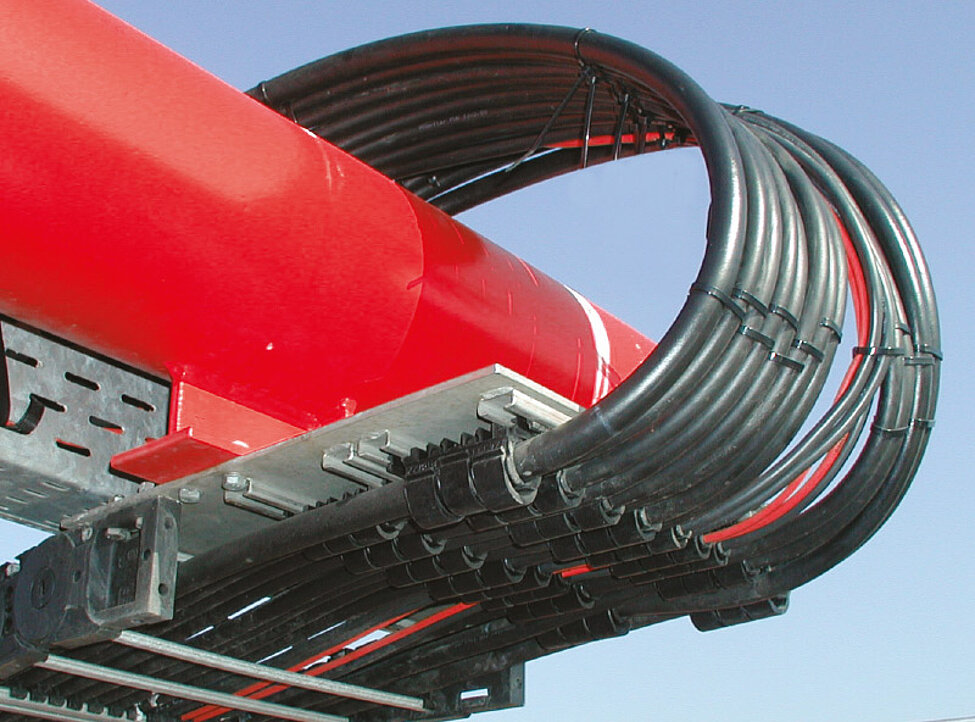

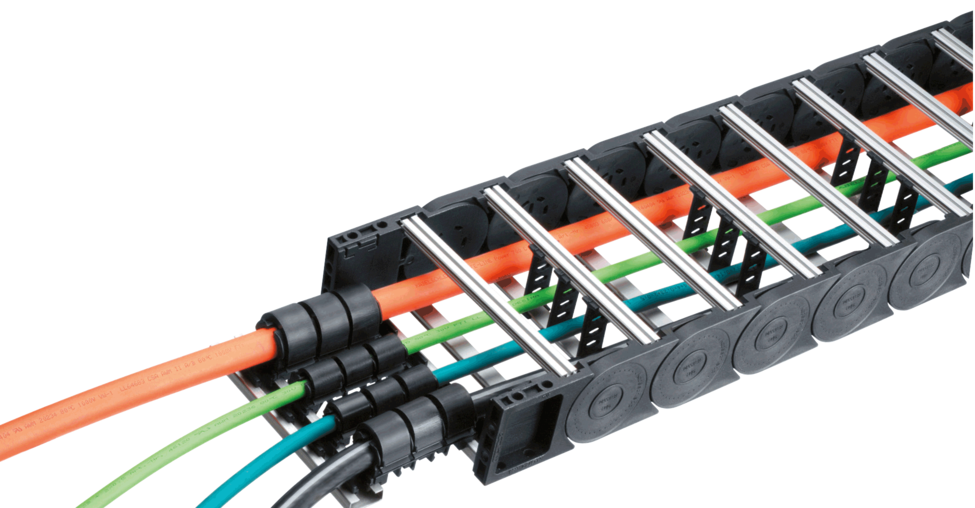

- Also usable as strain relief in control cabinets
Available sizes
| Type | Material no. | for cable Ø [mm] | Width B at | Height H [mm] | |
|---|---|---|---|---|---|
Ø min | Ø max | ||||
SZL 8 | 24989 | > 5.0 – 8.0 | 16 | 16 | 28 |
SZL 10 | 24990 | > 8.0 – 10.5 | 20 | 20 | 30 |
SZL 14 | 24991 | > 10.5 – 14.5 | 23 | 26 | 35 |
SZL 18 | 24992 | > 14.5 – 18.0 | 25 | 32 | 40 |
SZL 22 | 24993 | > 18.0 – 22.0 | 30 | 36 | 44 |
SZL 27 | 24994 | > 22.0 – 27.0 | 34 | 39 | 50 |
SZL 32 | 24995 | > 27.0 – 32.0 | 39 | 44 | 56 |
Fixing optionsFixing options

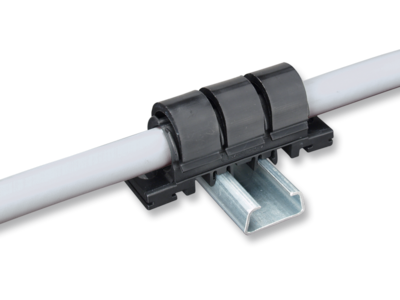

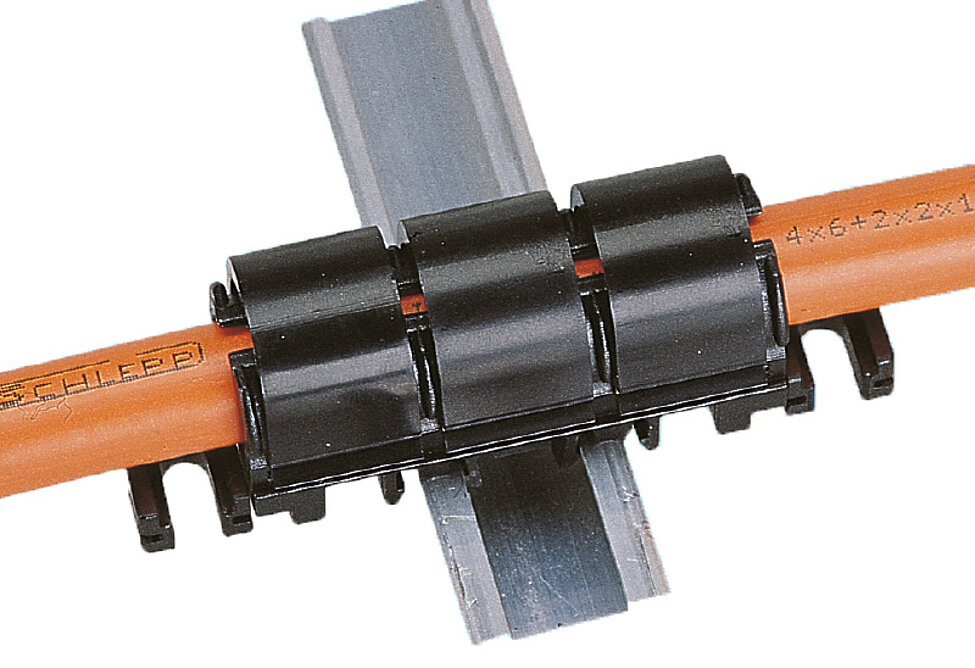

1. Clipped into a C-profile

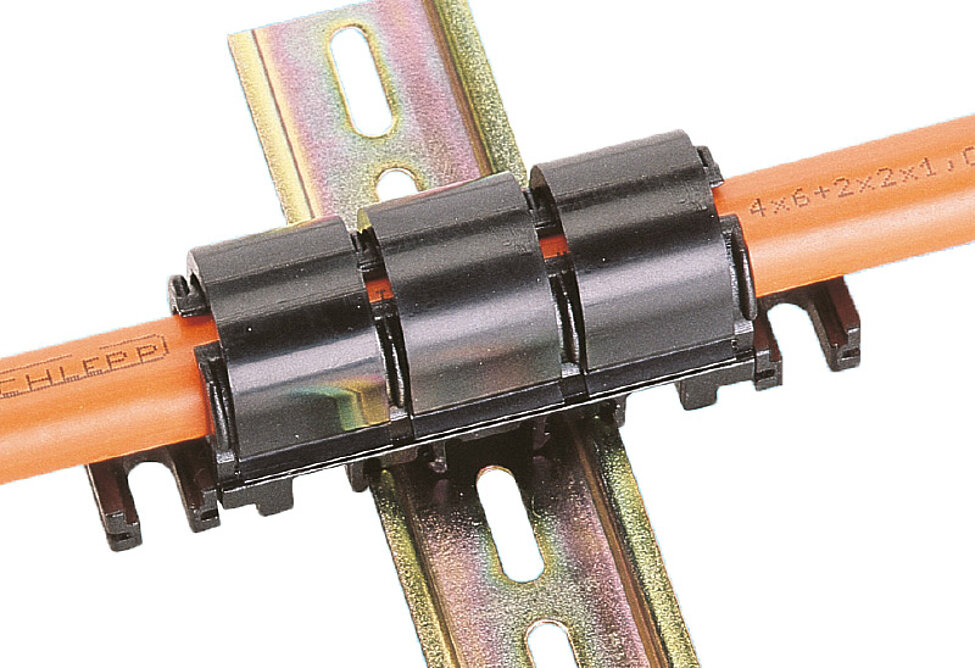

2. Clipped onto a DIN rail

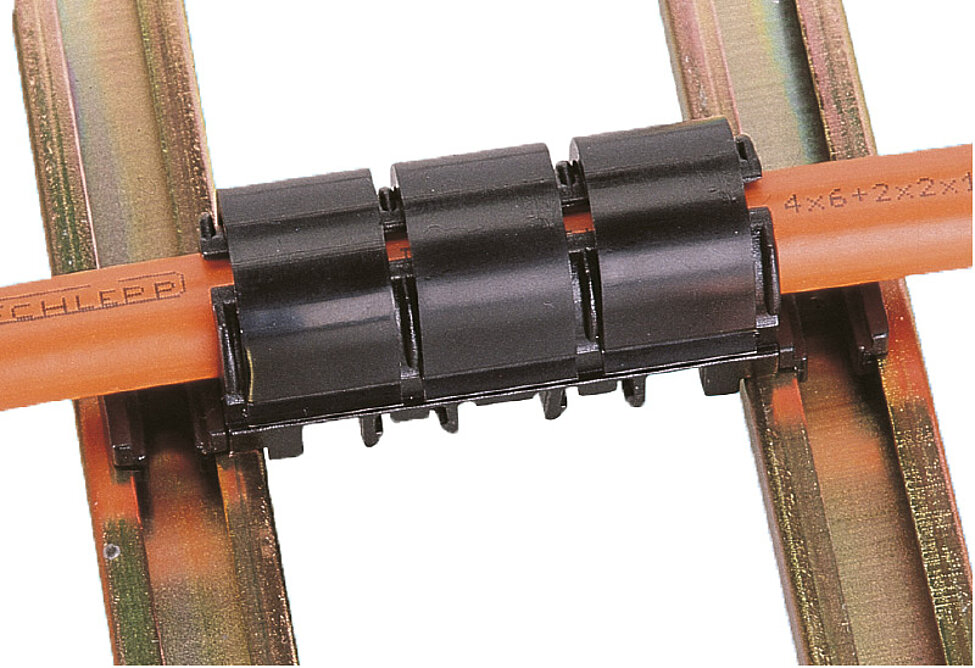

3. Inserted into two C-profiles

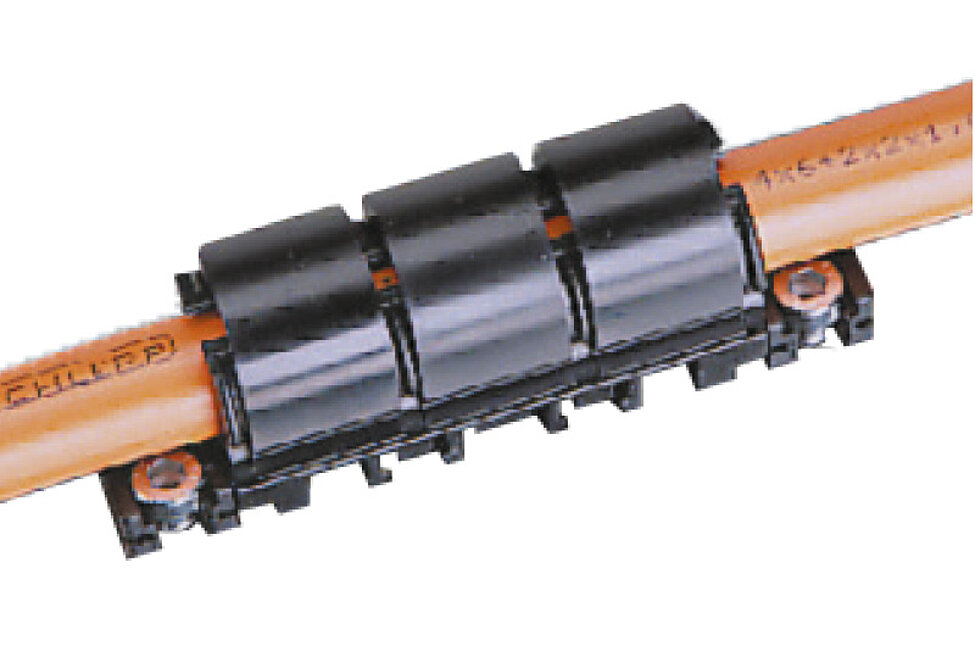

4. Directly bolted on

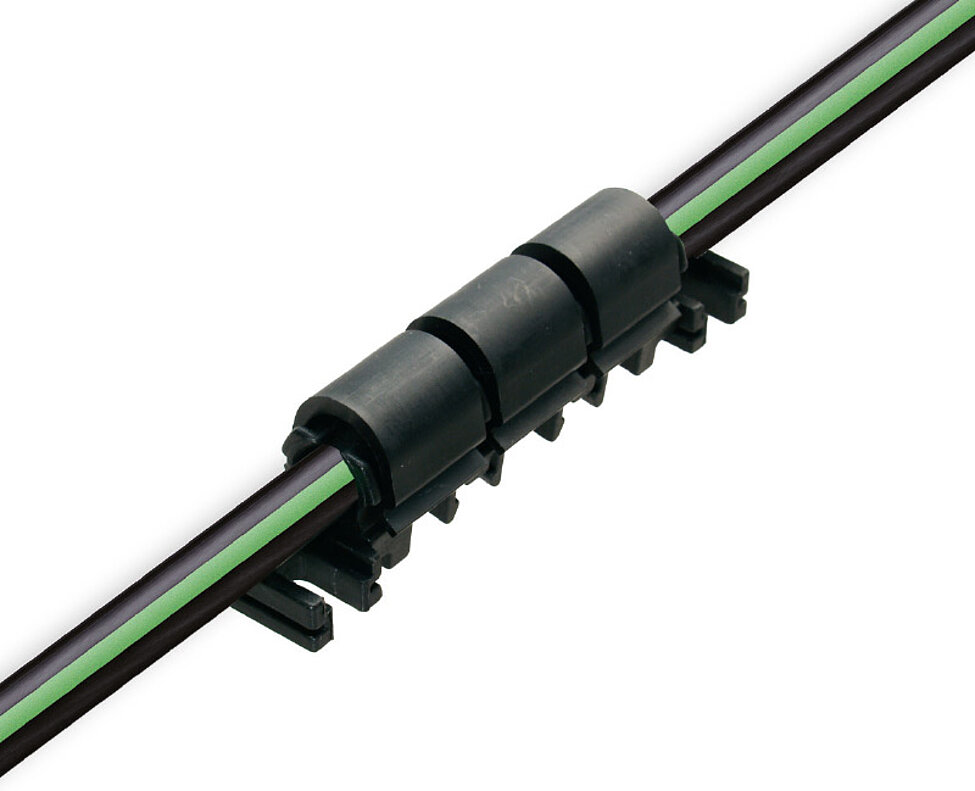

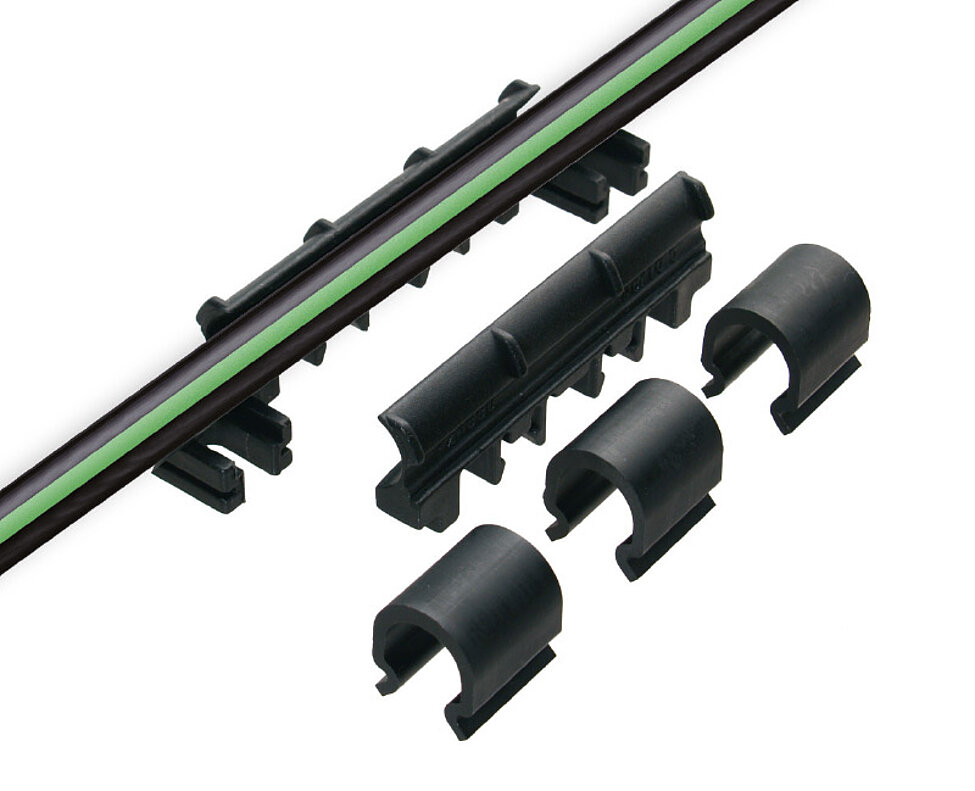

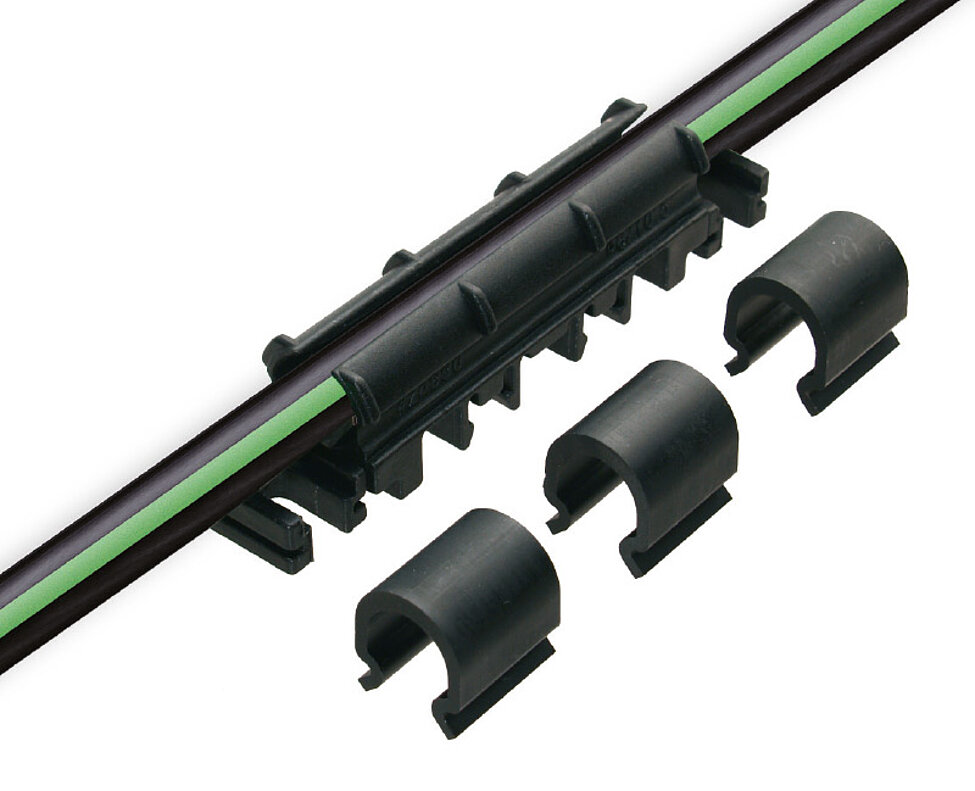

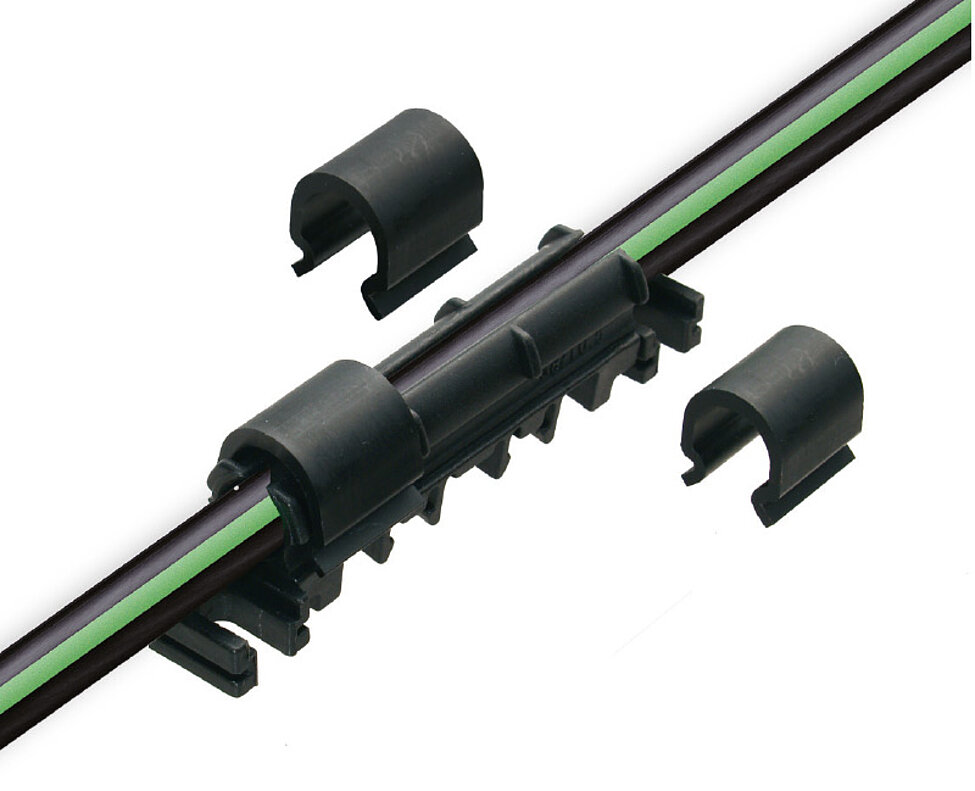

Installation of the SZL strain relief
