Block clamps

United States

call 800.323.7790

Properties

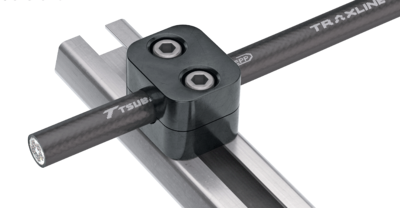

For strain relief of hoses.
With clamping screw(s) and support rail nut
Hoses and cables
For C-rails with slot widths of 11 mm and 16 mm

Available sizes

Type	Material no.	Height h_Sch [mm]	Width B_Sch [mm]	for cable Ø [mm]
BS 0.06	16701	27	28	6
BS 0.07	16702	27	28	7
BS 0.08	16703	27	28	8
BS 0.09	16704	27	28	9
BS 0.10	16705	27	28	10

Type BS 0

Suitable for C profiles with 11 mm slot (Article no. 3931, 3934, 3935, 3936) as well as for C-profiles with 16 mm slot (Article no. 3932, 3938, 3939)

Available sizes

Type	Material no.	Height h_Sch [mm]	Width B_Sch [mm]	for cable Ø [mm]
BS 1.06	16706	27	37	6
BS 1.07	16707	27	37	7
BS 1.08	16708	27	37	8
BS 1.09	16709	27	37	9
BS 1.10	16710	27	37	10
BS 1.12	16711	27	37	12
BS 2.14	16712	33	42	14
BS 2.16	16713	33	42	16
BS 2.18	16714	33	42	18
BS 3.20	16715	36	50	20
BS 3.22	16716	36	50	22
BS 3.23	16717	36	50	23
BS 3.25	16718	36	50	25
BS 3.27	16719	42	59	27
BS 3.30	16721	42	59	30
BS 4.32	16722	42	59	32
BS 4.34	16723	56	71	34
BS 4.35	16724	56	71	35
BS 4.38	16725	56	71	38
BS 4.40	16726	56	71	40
BS 4.42	16727	56	71	42
BS 5.45	16728	66	86	45
BS 5.48	16729	66	86	48
BS 5.51	16731	66	86	51

Type BS 1 – BS 5

Suitable for C profiles with 11 mm slot (Article no. 3931, 3934, 3935, 3936) as well as for C-profiles with 16 mm slot (Article no. 3932, 3938, 3939)
