TKHD series

Heavy duty cable carriers for long travel lengths and high additional loads

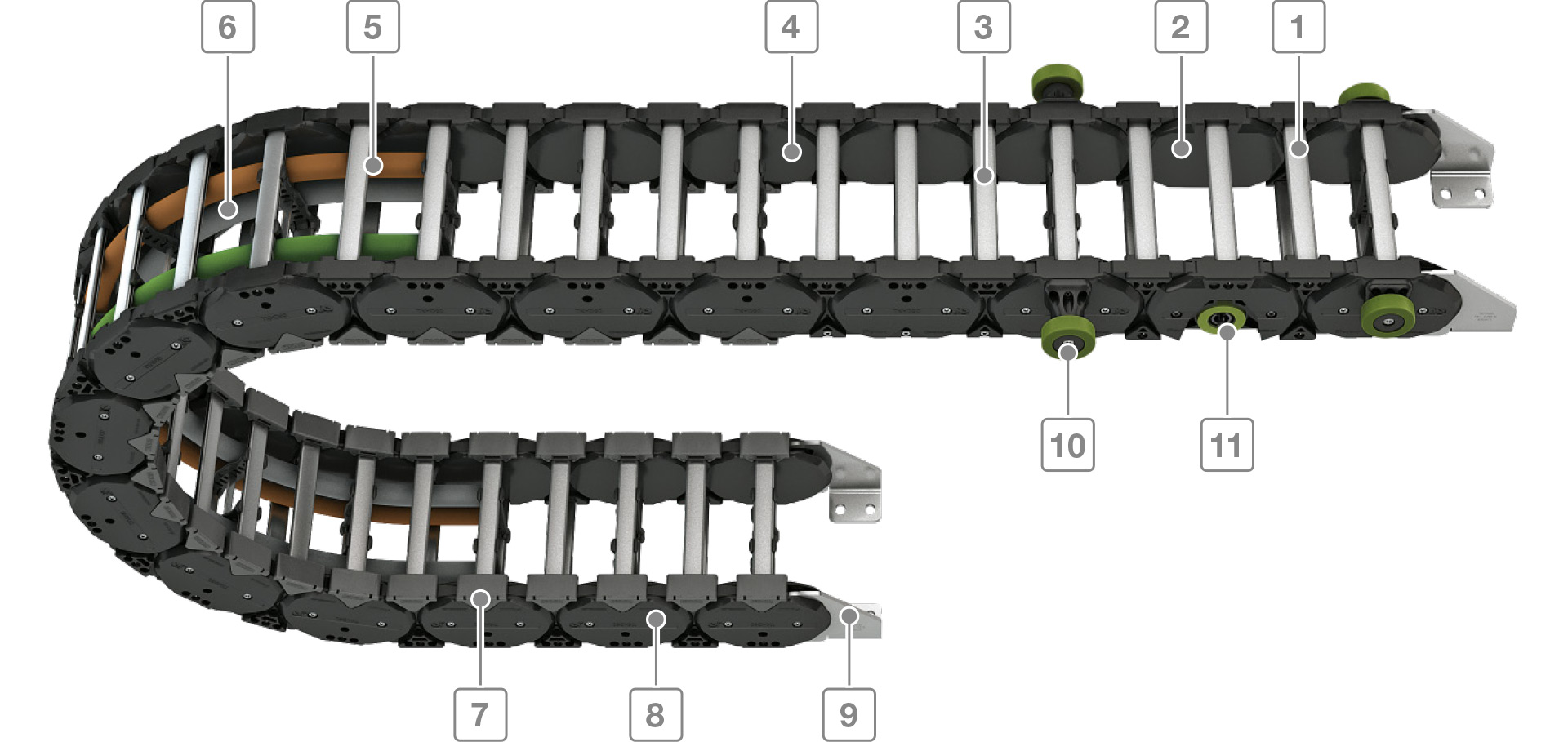

  1. Aluminum stays available in 1 mm width sections
  2. Plastic chain link plates
  3. Quick and easy opening to the inside or outside for cable laying
  4. Cable-friendly interior – no interfering edges
  5. Fixable dividers
  6. Dividers and subdivision for separating the cables
  7. Replaceable glide shoes for increased service life in gliding application
  8. Robust, multiple stop system
  9. Steel installation brackets
  10. RSC-system (roller supported system)
  11. With integrated roll for standard guide channels

Features

  • Massive, enclosed, stain-repellend stop system
  • Massive sidebands through robust double fork-bracket-construction
  • Sidebands easy to assemble
  • Reinforced pin bore connection
  • Integrated noise damping
  • Quick and easy opening to the inside or outside
  • for cable laying
  • Soil-resistant outer contour
  • Easy change of components
  • Maintenance-free
  • Symmetrical force curve in the sideband
  • Quiet and low-wear operating through polygon-­optimized contour and radii
  • Reduce drive power through less friction
Inner width (B<sub>i</sub>) in 1 mm increments
Long travel length
High additional load
Opens inward/outward
Sliding dividers
Fixable dividers
Height separation possible
All pictographs
TKHD series Features 1

Variable vertical and horizontal inner distribution optional with fixable dividers

TKHD series Features 2

Suitable also for roller-mounted application (RSC)

TKHD series Features 3

Replaceable glide shoes for longer service life in gliding applications

TKHD series Features 4

Roller chain for travel distances up to 800 m

Types

TKHD90

Inner height [hi]:
87 mm
Inner widths [Bi]:
100 – 800 mm
Pitch [t]:
91 mm
Bending [KR]:
250 – 500 mm
more details

TKHD90-R

Inner height [hi]:
87 mm
Inner widths [Bi]:
100 – 800 mm
Pitch [t]:
90 mm
Bending [KR]:
250 – 500 mm
more details
