K series
Cost-effective, robust cable carrier – suitable for large additional loads
- Aluminum stays available in 1 mm width sections
- Aluminum stays in reinforced version
- Aluminum stays with 4 screw-fixing points for extreme loads
- Aluminum hole stays
- Mounting frame stays
- Plastic stays available in 8 or 16 mm width sections
- Can be opened quickly on the inside and the outside for cable laying

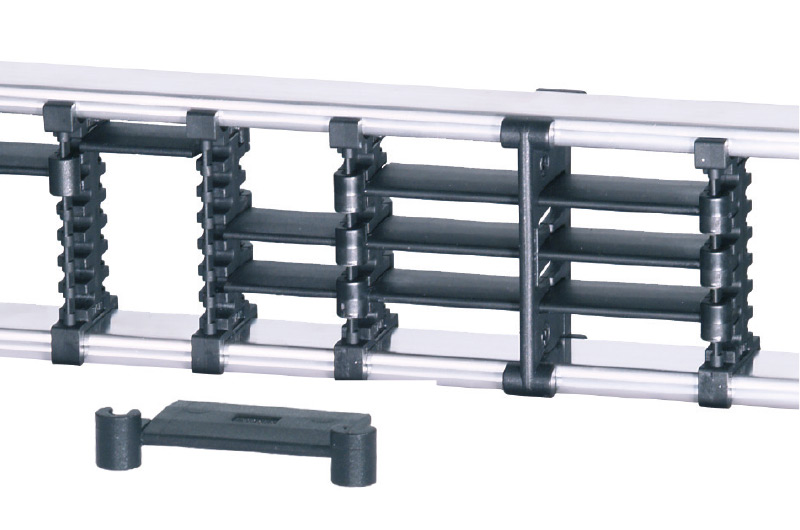

- Fixable dividers
- Molded slide runners
- Slide discs
- C-rail for strain relief elements
- Strain relief elements
- Universal end connectors (UMB)
Features
- Stable sidebands through robust link plate design
- Encapsulated, dirt-resistant stroke system
- Long service due to minimized hinge wear owing to the “life extending 2 disc principle“
- Versions with aluminum stays available in 1 mm width sections up to 700 mm inner width
- Versions with plastic stays available in 8 or 16 mm width sections
- Large selection of vertical and horizontal stay separation options for your cables
Pictographs
Inner height
Outer height
Inner width
Outer width
Inner width (Bi) in x mm increments
Pitch
Bending radius
Long travel length
Travel length unsupported
Travel length gliding
High additional load
High travel acceleration
High travel velocity
Stay arrangement on every 2nd chain link
Stay arrangement on every chain link
Cannot be opened
Opens outward
Opens inward
Opens inward/outward
Covered cable carrier
Sliding dividers
Fixable dividers
Fixable dividers in x mm grid
Height separation possible
Height separation in 1 mm increments
Hole stay available
Guide channel required
Strain relief
Clean room suitable
Quiet running/low noise
Sold by the meter
Low weight
ESD material
Ex-protection-material
Heat-resistant
Cold-resistant
Resistant to hot chips
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)
Minimized hinge wear owing to the “life extending 2 disc principle“
Slide discs for long service life for applications where the carrier is rotated through 90°
Molded slide runners for long service life in sliding arrangement
Many separation options for the cables
Types
K0650
Inner height
[hi]:
38
mm
Inner widths
[Bi]:
68 – 600
mm
Pitch [t]:
65
mm
Bending [KR]:
75 – 300
mm
K0900
Inner height
[hi]:
58
mm
Inner widths
[Bi]:
81 – 700
mm
Pitch [t]:
90
mm
Bending [KR]:
130 – 385
mm
